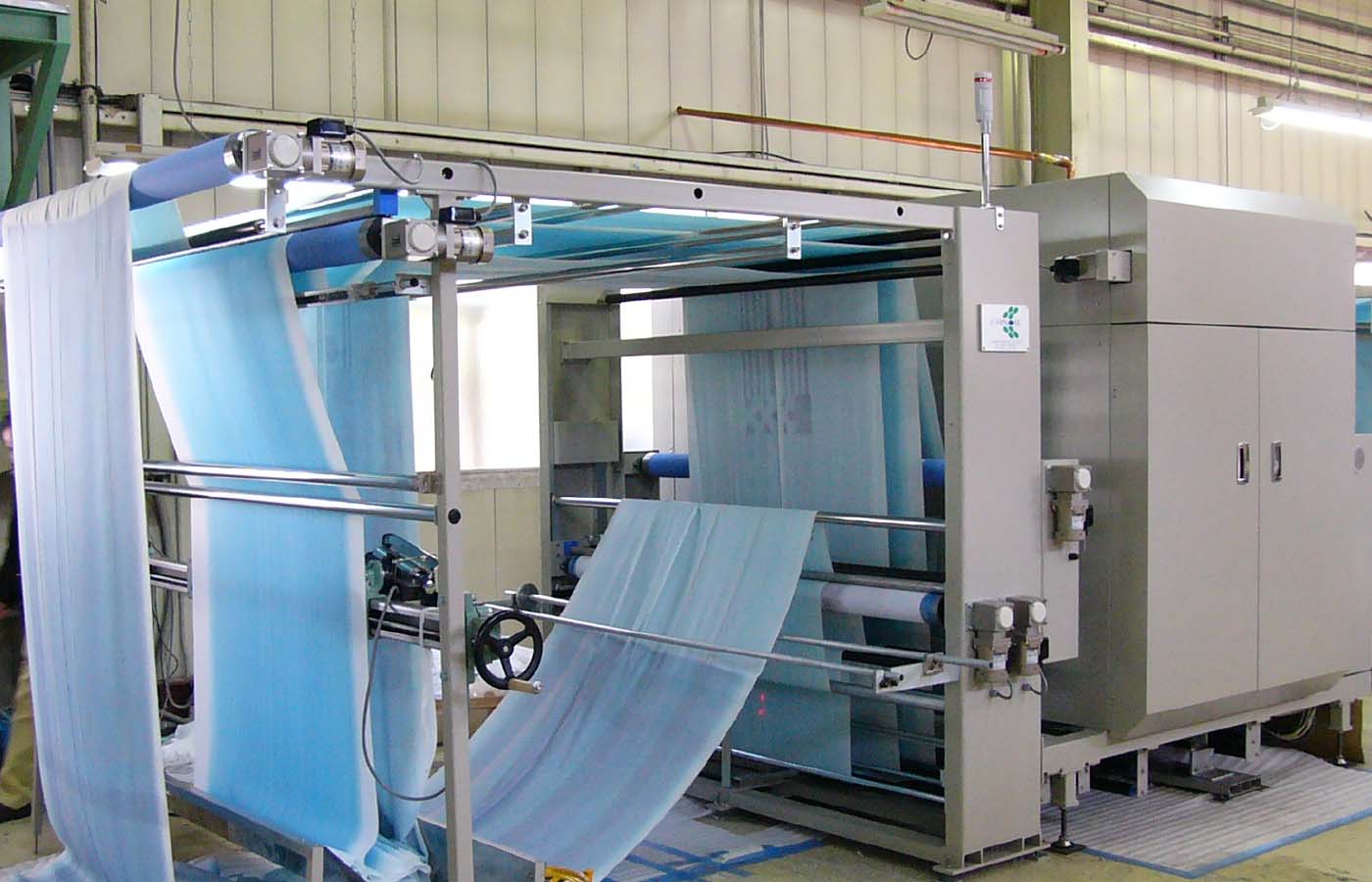

Ichinose IRSM Steamer for Textile Printing

 Ichinose IRSM Steamer - Compact High-Efficiency Steaming for Small Lot Production

Ichinose IRSM Steamer - High-Quality Fixation for Printed Textiles

Ichinose IRSM Steamer is specifically designed for small-lot, multi-variety textile printing production. Developed to address the inefficiencies and losses associated with traditional steamers, the IRSM delivers compact, energy-efficient, and high-quality heat treatment for printed fabrics.

Immediate steaming after printing is critical to maintain print quality. The IRSM Steamer provides uniform temperature distribution, precise temperature control (102°C - 180°C), and compact design - making it the ideal solution for textile printers handling diverse fabric types and dye formulations.

Key Benefits

Compact Design

Space-efficient design fits easily into small production facilities without compromising performance.

Energy Efficient

Superior energy efficiency reduces operating costs and environmental impact.

Uniform Temperature

Excellent temperature distribution ensures consistent fixation quality across entire fabric width.

Wide Temperature Range

Adjustable from 102°C to 180°C - compatible with all fabric and dyestuff combinations.

Small Lot Optimization

Designed for quick changeovers and efficient processing of small batches with minimal waste.

Integrated System

Complete package includes boiler, superheater, control panel, and tension-controlled feeding device.

Technical Specifications

Product Name Ichinose IRSM Steamer
Manufacturer TOSHIN KOGYO CO., LTD. (Japan)
Cloth Width Max 2,000 mm
Cloth Thickness Max 10 mm
Fabric Length Options 10m, 20m, 30m, 40m
Temperature Range 102°C - 180°C (Adjustable)
Power Source AC220V 60Hz 3P 100A
Machine Color Ivory

Treatment Speed Reference

Fabric + Dyestuff10m20m30m40mCondition
Cotton + Reactive Ink 60 m/hr 120 m/hr 180 m/hr 240 m/hr 102°C x 10 min
Silk + Acid Ink 20 m/hr 40 m/hr 60 m/hr 80 m/hr 102°C x 30 min
Polyester + Disperse Ink 75 m/hr 150 m/hr 225 m/hr 300 m/hr 175°C x 8 min
Pigment Ink 120 m/hr 240 m/hr 360 m/hr 480 m/hr 175°C x 5 min

Included Equipment

  • Main Chamber - 1 set (Steaming chamber with uniform temperature distribution)
  • Cloth Feeding Device - 1 set (With tension control for consistent fabric handling)
  • Electrical Steam Boiler - 1 set (Integrated steam generation)
  • Control Panel - 1 set (Digital temperature and process control)
  • Electrical Superheater - 3 sets (Precise temperature regulation)

Applications

The Ichinose IRSM Steamer is ideal for textile printing facilities handling:

  • Small-lot production - Efficient processing of batches as small as 10 meters
  • Multi-variety orders - Quick changeovers between different fabric types and colors
  • Reactive dye printing - Cotton, viscose, and other cellulosic fibers
  • Acid dye printing - Silk, wool, and nylon fabrics
  • Disperse dye printing - Polyester and synthetic fabrics
  • Pigment printing - All fabric types with pigment ink systems

Why Choose Ichinose IRSM Steamer?

Traditional steamers were designed for large-lot production, resulting in significant losses and inefficiencies when processing small batches. The IRSM Steamer eliminates these problems with:

  • Minimal setup time - Start steaming quickly without lengthy warm-up
  • Reduced energy consumption - Compact chamber requires less steam and power
  • Consistent quality - Uniform temperature prevents under/over-fixation
  • Flexible production - Handle rush orders and sample runs efficiently
