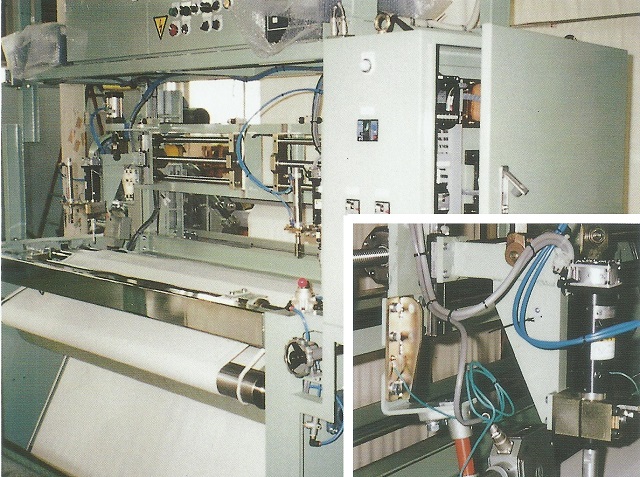

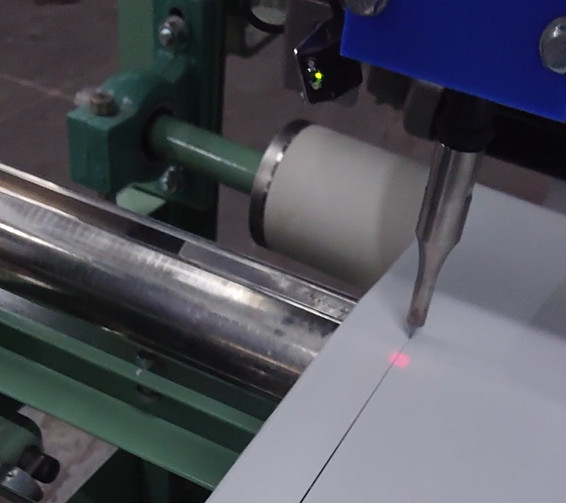

PT. TIARA SERVICE CENTREHanayama Cerasonic Cutting Machine utilizes advanced ultrasonic wave technology (28kHz) to cut fabric selvedge with exceptional precision and speed. The ultrasonic cutting process simultaneously cuts and seals synthetic fabric edges through controlled melting, preventing fraying and locking the weave structure.
Designed for thermoplastic materials (synthetic fibers, natural fibers, and nonwoven fabrics), the Cerasonic system uses a specialized ceramic horn to achieve clean, sealed edges. Compared with conventional heat cut machines, Cerasonic delivers superior finishing without "melt balls", "yellowing", or "burnt" marks - resulting in smooth cross-sections with good touch and no post-process waste.
✓ Universal Cutting Capability
Cuts almost all types of fabrics regardless of quality, thickness, shape, or processing stage - from gray fabric to finished products.
✓ High-Speed Operation
Operating speeds from 6 to 60 m/min - significantly faster than conventional cutting systems.
✓ Superior Edge Finish
No "melt balls", "yellowing", or "burnt" marks. Smooth cross-section with good touch eliminates post-process waste.
✓ Ceramic Horn Technology (PAT)
Patented ceramic blade tip provides wear resistance, chemical resistance, and minimal heat generation during operation.
✓ Automatic Frequency Control
28kHz optimum frequency with auto-tracking and constant amplitude control for consistent cutting quality.
✓ Easy Operation
User-friendly controls with optional touch panel display for simplified operation and monitoring.
